Valve Maintenance, Val-Tex


Lube Sealant Bulk/Stick

Val-Tex Lube Sealant Packaging

Superior lubricity for easier valve operation. Excellent sealing capability. Available in varying viscosities. Industry standard packaging.
Bulk lube sealant: 5 quart, 5 gallon, 16 gallon, 50 gallon, cartridges/carton, packs/carton.
Stick lube sealant: Types: A, B, C, D, G, J, K, V. Available sizes: 1-1/2", 2-1/8", 2-5/8", 3-1/2", 8-1/2", 10", 10-1/2".
Lube Sealants and Lubricants

Val-Tex Lube Sealants and Lubricants

Lube Sealant: Multipurpose, Low-temp, High-temp, Synthetic
Emergency Lube Sealants: Formulated to seal badly worn ball, plug, and gate valves.
Light Lubricants: Synthetic valve lubricant ideal for commissioning of new ball valves.
Silicone Sealants: Available with moly-disulfide.
A.P.I. Gate Valve Lubricant: Used for body fill. Available in bulk only.
Valve Flush

Val-Tex Valve Flush

Valve Flush cleans out hardened sealants and lubricants that contain solids and/or fillers in all types of valves. This superior product is formulated using non-petroleum oils. Valve Flush does not contain acid, caustic, solvent, or solids to add to your problems. Valve Flush is a safe, biodegradable, non-hazardous material. It is generally compatible with all lubricants and sealants. After Valve Flush has freed your valve, follow with lube sealants.
Stem and Thread Compounds

Val-Tex Stem and Thread Compounds

10-S Stem and Thread Lubricant: Temperature Range: 10°F to 350°F. Superior weather resistant thread and stem lubricant that helps to retard corrosion.

19-S Thread Compound: Temperature Range: 10°F to 400°F. Seals and protects threads. Resistant to corrosion. Prevents galling of threads. Ideal for stainless to stainless threads.
Lubrication Fittings, Adapters, and Tools

Val-Tex Lubrication Fittings, Adapters, and Tools

Giant Buttonhead Fittings, Combination Giant Buttonhead/Lube Screw Fittings, Vented Cap Fittings, Vented Cap Giant Buttonhead Fittings, Safety-Seal Fittings, Packing Injectors, Body Bleed Fittings, Auxiliary Fittings, Zerk Adapters, Pressure Releasing Tools...
Lubrication Adapters: WKM #1 / CIW #1 / CIW-GB-1, WKM #2 / CIW #2 / CIW-GB-2, WKM #3 / CIW #3 / CIW-GB-3.
1000-31 Manual Lubrication Gun

Val-Tex 1000-31 Manual Lubrication Gun
(Hand Operated)

Val-Tex 10,000 P.S.I. High Pressure Screw Prime Valve Lubrication Gun. Accepts standard lube sealant sticks and Valve Flush. Durable and easily repairable because it has few moving parts. Shipped with hose center, ball bearing swivel, and giant buttonhead coupler with nylon coupler washer. Options include high pressure hose tee, gauge, gauge guard, carrying strap, Z-swivel, various hose lengths and repair parts.

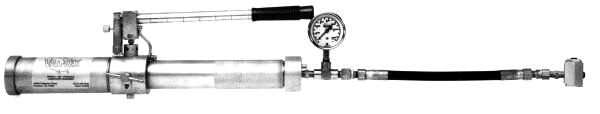

1400 Hydraulic Lube Gun

Val-Tex 1400 Hydraulic Lubrication Gun
(Hand Operated)

Val-Tex 10,000 P.S.I. High Pressure Hydraulic Valve Lubrication Gun. Rugged, light weight unit that is self priming and can be used in any position. Shipped with lube pack adapter, hose tee, 15,000 P.S.I. 2 1/2 inch liquid filled stainless steel gauge, ball bearing swivel, hose center, and giant buttonhead coupler with nylon coupler washer. Options include gauge guard, carrying strap, Z-swivel, 1/4 turn bleeder valve, variable hose lengths, and repair kits.
Mini-Mite Mini Greaser

Val-Tex “Mini-Mite” Mini Greaser
(Hand Operated)

The Val-Tex "Mini-Mite" allows you to quickly inject lubrication sticks into stop cock valves. Features Include: easy loading, sturdy construction, multi-use handle. The unit is also available with a hose (MM-1) or with hose and giant buttonhead coupler (MM-1-27).
Big Grip Cartridge Loader

Val-Tex “Big Grip” Cartridge Loader
(Hand Operated)

The Val-Tex "Big Grip" Cartridge Loader makes it easier and more convenient to load cartridges of lube sealant and lubricant. It is designed for use with the 1400, QS-2000A, and QS-2200A lubrication guns.
6268A-13 Manual Lubrication Gun

Val-Tex 6268A-13 Manual Lubrication Gun
(Hand Operated)

Injects Valve Flush and all types of lube sealant, from heavy to light viscosities with equal ease. Extra heavy duty barrel assures maximum safety and long life. The Val-Tex 6268A-13 accepts all standard lube sealant sticks. Standard features include extra long handle for maximum leverage, mechanical screw and spring primer to assure positive prime and a pressure relief screw for ease in disconnecting.
QS-2000A Lubrication Gun

Val-Tex QS-2000A Lubrication Gun
(Air/Hydraulic)

Fast, affordable, compact, rugged lubrication unit. The lightweight Val-Tex QS-2000A is easily portable and pumps lube sealant sticks, Lube Packs, and Valve Flush. The unit comes complete with a six foot, 3/8 inch I.D. high pressure hose, 15,000 PSI gauge, Gauge Guard, dual swivels, and a giant buttonhead coupler. Internal safety relief valve set at approximately 10,000 PSI to prevent over pressuring the unit.
QS-2200A Lubrication Gun

Val-Tex QS-2200A Lubrication Gun
(Electric/Hydraulic)

Fast, compact, rugged lubrication unit. Run by a rechargeable battery powered hydraulic pump, the Val-Tex QS-2200A gives you complete mobility and eliminates the need for an air supply. It is suitable for use with J size lube sealant sticks, Lube Packs, cartridges, and Valve Flush. The unit comes complete with a six foot, 3/8 inch I.D. high pressure hose, 15,000 PSI gauge, Gauge Guard, dual swivels, and a giant buttonhead coupler.
QS-5000 Lubrication Gun

Val-Tex QS-5000 Lubrication Gun
(Air/Hydraulic)

Fast, compact, rugged lubrication unit. Run by a rechargeable battery powered hydraulic pump, the Val-Tex QS-2200A gives you complete mobility and eliminates the need for an air supply. It is suitable for use with J size lube sealant sticks, Lube Packs, cartridges, and Valve Flush. The unit comes complete with a six foot, 3/8 inch I.D. high pressure hose, 15,000 PSI gauge, Gauge Guard, dual swivels, and a giant buttonhead coupler.
QS-5000-C Lubrication Gun

Val-Tex QS-5000-C Lubrication Gun
(Air/Hydraulic)

Compact, easy to transport, fast, versatile, heavy duty lubrication unit that will pump large volumes of stick lube sealant, lube packs, and Valve Flush. The Val-Tex QS-5000-C is quickly separated into two parts by removing the cylinder for easy loading and unloading by one person. Assembly is as simple as inserting the two catch pins to secure the cylinder clamps to the frame. The QS-5000-C has the largest stick lube sealant capacity in the industry.
Air Operated Lubrication Gun

Val-Tex Air Operated Lubrication Guns

Val-Tex "L'il Greaser" - Model 5-70: compact, portable gun ideal for tight places, overhead lubrication, and easy transporting around the field.
Val-Tex "Easy Lube" - Model 10-70: caddy cart with large rubber tired wheels, easy maneuverability.
Val-Tex "Easy Lube" - Model 40-70: practical gun for servicing a large number of valves. The reversible pail adapter provides uninterrupted flow.
