Handling Tools and Equipment


DU Rotary Skid   SD Rotary Skid   Flake Rotary Skid

Rotary Slips / Skids

SD Rotary Slips Rotary Slips (SD series) are similar to Varco type, can accommodate drill pipe from 23/8 to 51/2 inch (60.3-139.7mm) O.D..They are classified as type Short (SDS), Medium (SDML) and extra Long (SDXL) according to gripping length. SDS slips are designed for shallow hole drilling, SDML slips are the perfect choice for all medium depth drilling, SDXL slips are designed for deep drilling The designed and manufactured according to API Spec 7K. DU Rotary Slips, DU Series Rotary Slips have three models: DU, DUL, and SDU. They are with large handling range and light weight. These slips have larger contact area on the taper and heat-treated for strength and wear resistance. The designed and manufactured according to API Spec 7K. Flake Rotary Slips Flake Type Rotary Slips can handle various O.D. drill pipes, drill collars or casing by changing insert gripping dies or insert bowls. The designed and manufactured according to API Spec 7K. The designed and manufactured according to API Spec 7K.
Casing Slip CMS XL

Casing Slips

Casing Slips CMS XL Casing Slips (UC-3) are multi-segment slips with of 3in/ft on the diameter taper slips (except size 8.5/8”). Every segment of one slip is forced equally while working. Thus the casings could keep a better shape. They should work together with spiders and insert bowls with same taper. CMS-XL slips are designed to handle casing from 6 5/8" to 30 inches OD. All slips have an API taper of 4"/ft on the diameters. The designed and manufactured according to API Spec 7K.
Pneumatic Slips

Pneumatic Slips

Pneumatic Slips Pneumatic Slips(PS Series)are pneumatic tools which are suitable for all kinds of rotary tables for hoisting drill pipes and handling casings. They are mechanized operating with strong hoisting force and large working range. They are easy to operate and dependable enough. Besides, they can not only reduce the workload but also improve the work efficiency. The designed and manufactured according to API Spec 7K.
Drill Collars Slip

Drill Collar Slips

Drill Collar Slips Drill Collar slips we supply can interchange Varco design. Their each segment is a rugged drop forging, with an extra long back to provide maximum support to the circular button gripping elements. Full wrap-around design and circular buttons assure positive holding and slip setting. Drill Collar slips are flat on top to accommodate the MP Clamp. The designed and manufactured according to API Spec 7K.
Drill Collar Elevator

Drill Collar Elevators

Drill Collar Elevators Drill collar elevators are hoisting tools for drill collars with zip lift recess and drill collars with lift plugs in oil and gas field. The Elevators are designed and manufactured according to API Spec 8A for drilling and production hoisting equipment. There are 4 drill collar elevators ranging from 100 MT (900 KN) to 150 MT (1,350 KN) capacity and covering pipe sizes from 2 1/2" to 11 1/4" OD.
Pipe Spinners

Pipe Spinners

Pipe Spinners
Kelly Drive Bushing

Kelly Drive Bushing

Roller Kelly Bushings, Kelly Drive Bushing, Square Drive, Heavy Duty Pin Drive
Manual Tongs

Manual Tongs

Manual Tongs MT SERIES MANUAL TONG are offered in torque ranges from the lightweight small 16,000 lb-ft to the larger and more rugged 100,000 lb- ft and are completely interchangeable with other major manufacturer's tongs (Varco BJ, Woolley, National Oilwell). Each tong features tough, heavy- duty designs with heat-treated hinge pins and long-lasting "stagger tooth" tong dies (Blue Diamond, Pyramid).
Tong Dies

Tong Dies

Tong Dies

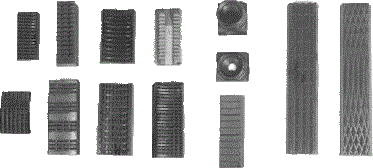

Slip Inserts

Slip Inserts

Slip Inserts Skid Inserts
Replacement Parts

Replacement Parts

Replacement Parts

DCS Rotary Slips   SD Rotary Slips

Our parts catalog is so extensive that many items are not listed on this website.
If you do not find the products you are looking for, please contact us by email at sales@americanoilfieldtools.com or call us at (832) 474-4440.
